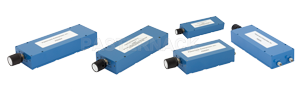

RF Phase Shifters



Pasternack RF phase shifters are passive microwave devices used to change

the phase angle of an RF signal. Our variable analog RF phase shifter designs

have consistent amplitude across all phase states and low insertion loss making

them ideal for applications such as phase modulators, frequency up-converters,

testing instruments, phased array antennas, etc. All of our analog radio frequency phase

shifters are REACH compliant.



RF phase shifters from Pasternack are designed with SMA or 2.92mm female connectors and have broad band operating frequencies ranging between DC to 40 GHz. Pasternack passive RF, microwave and millimeter wave phase shifters have average power ratings of 100 Watts and a peak power rating of 3,000 Watts. Our RF analog phase shifters have a phase range of 0° to 360° and a phase adjustment of 30° to 60° per GHz depending on type and style. Maximum insertion loss of these broadband phase shifters range from 0.5 dB to 2.5 dB.



The Pasternack ISO 9001:2008 registered facility ships all RF variable phase shifters from stock the same day you order them. Pasternack Enterprises offers the broadest and deepest inventory of RF, microwave and millimeter wave components available. Expert technical support and friendly customer service personnel are always here to assist you. United Kingdom customers can contact Pasternack by e-mail at sales@pasternack.com and techsupport@pasternack.com or by calling +1-949-261-1920 from the UK).



For local technical support and to purchase RF phase shifters in the United Kingdom,

please contact SpecTech Ltd. at (44) 01420 544789
